FIREROL Medium Wall Multicore Overall Screened & Fire Resistant Cables 300/500 V or 0.6/1 kV

EN 50264-3-2(FRL-MW-05M-OS-AS+/FRL-MW-1M-OS-AS+)

EN 50264 Medium Wall Power & Control Cable

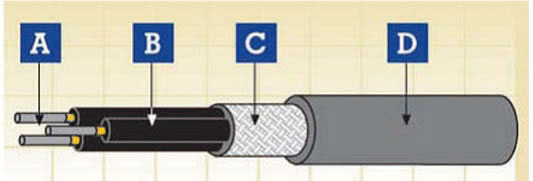

A.Conductor B.Insulation C.Screen D.Sheath

Application

Used as power and control cable for protected installations inside and outside of rail and transport vehicles,

where handling and installation cost are an important factor.

Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels,

driver desks etc.

Construction

Conductor

Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5

Insulation

LSZH elastomeric compound as defined in EN 50264-1 (EI 106 to EI 110)

Overal screen

Tinned annealed copper wires

Outer sheath

LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104

Electrical & Mechanical Properties

Nominal Voltage:300/500 V or 0.6/1 kV

Maximum Conductor Temperature:+90 deg (fixed installation)

Minimum Permissible Ambient Temperature:-25/-40 deg (fixed installation)

Bending Radius:Fixed installation:10 x Overall Diameter (D<12mm);

　　　　　　　　　　　　　　　　　　12 x Overall Diameter (D>12mm)

　　　　　　　　　Flexible installation:20 x Overall Diameter (D<12mm);

　　　　　　　　　　　　　　　　　　　25 x Overall Diameter (D>12mm)

Chemical & Environmental Properties

EN 60684-2:No fluorine

EN 50305; EN 60811-2-1:Resistance to mineral oil & fuel oil, acid & alkali

EN 50305:Resistance to ozone

Fire Performance for rolling stock application

EN 50306-2:Hazard levels HL1, HL2/HL3

DIN 5510-2:Protection level 1/2/3/4

BS 6853:Interior use 1a, 1b, II; Exterior use 1a, 1b, II

NF F 16-101:FO

EN45545-2：R15 Interior/ R16 Exterior HL1, HL2, HL3

EN50200：PH15, PH30, PH60

Fire Performance in general

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
EN 50267-2-1; IEC 60754-1; NF C 32-074;NF C 20-454; VDE 0472 Teil 815	Halogen Free
EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853	Low Toxicity
NFF 16101; NFF 63808; BS6853	Smoke index
IEC60331-21	The circuit integrity test under fire of cables rated 0.6/1.0kV and below
EN45545-2	Requirement for fire behavior of materials & components R15/R16
EN 50200: 2006	Resistance to fire of unprotected small cable for use in emergency circuits 5 classifications are defined: PH 15,30,60, 90 or 120mins

FRL-MW-05M-OS-AS+ 300/500 V

Nominal Cross-Sectional Area (a)	Conductor Diameter (b)	Min. Mean Thickness of Insulation	Core Dimensions		Min. Screen Wire Diameter	Min. Average Sheath Thickness	Overall Diameter		Weight	Conductor Resistance	Insulation Resistance
			Core Dimensions				Overall Diameter			Conductor Resistance	EI 110	EI 106/7/8/9
			Min.	Max.			Min.	Max.		20°C	20°C	20°C
n x mm²	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	Ω/km	MΩ x km	MΩ x km
2 x 1	1.25	0.4	2.24	2.64	0.16	0.6	6.24	7.34	81	20.0	15.0	7.5
4 x 1	1.25	0.4	2.24	2.64	0.16	0.7	7.24	8.44	132	20.0	15.0	7.5
7 x 1	1.25	0.4	2.24	2.64	0.16	0.7	8.44	9.84	203	20.0	15.0	7.5
9 x 1	1.25	0.4	2.24	2.64	0.21	0.8	10.44	12.14	275	20.0	15.0	7.5
12 x 1	1.25	0.4	2.24	2.64	0.21	0.8	11.14	12.94	346	20.0	15.0	7.5
19 x 1	1.25	0.4	2.24	2.64	0.26	1.0	13.44	15.64	538	20.0	15.0	7.5
24 x 1	1.25	0.4	2.24	2.64	0.26	1.0	15.44	18.04	667	20.0	15.0	7.5
32 x 1	1.25	0.4	2.24	2.64	0.26	1.0	16.84	19.64	846	20.0	15.0	7.5
37 x 1	1.25	0.4	2.24	2.64	0.26	1.0	17.44	20.34	953	20.0	15.0	7.5
40 x 1	1.25	0.4	2.24	2.64	0.26	1.2	18.44	21.54	1044	20.0	15.0	7.5

4 x 1.5	1.5	0.5	2.64	3.14	0.16	0.7	8.24	9.64	180	13.7	14.0	7.0
7 x 1.5	1.5	0.5	2.64	3.14	0.21	0.7	9.84	11.54	295	13.7	14.0	7.0
9 x 1.5	1.5	0.5	2.64	3.14	0.21	1.0	12.34	14.44	395	13.7	14.0	7.0
12 x 1.5	1.5	0.5	2.64	3.14	0.21	1.0	13.24	15.44	497	13.7	14.0	7.0
19 x 1.5	1.5	0.5	2.64	3.14	0.26	1.0	15.54	18.14	750	13.7	14.0	7.0
24 x 1.5	1.5	0.5	2.64	3.14	0.26	1.2	18.34	21.44	955	13.7	14.0	7.0
32 x 1.5	1.5	0.5	2.64	3.14	0.26	1.2	20.04	23.44	1215	13.7	14.0	7.0
37 x 1.5	1.5	0.5	2.64	3.14	0.26	1.2	20.74	24.24	1372	13.7	14.0	7.0

4 x 2.5	1.95	0.5	3.14	3.64	0.21	0.7	9.44	11.04	249	8.21	13.0	6.5
7 x 2.5	1.95	0.5	3.14	3.64	0.21	0.8	11.34	13.24	398	8.21	13.0	6.5
9 x 2.5	1.95	0.5	3.14	3.64	0.26	1.0	14.14	16.54	539	8.21	13.0	6.5
12 x 2.5	1.95	0.5	3.14	3.64	0.26	1.0	15.24	17.74	681	8.21	13.0	6.5
19 x 2.5	1.95	0.5	3.14	3.64	0.26	1.2	18.04	21.04	1027	8.21	13.0	6.5
24 x 2.5	1.95	0.5	3.14	3.64	0.26	1.2	20.84	24.34	1278	8.21	13.0	6.5

(a)= One earth conductor (green/yellow) can be included upon request

(b)= For information,indicative only

FRL-MW-1M-OS-AS+ 0.6/1 kV

Nominal Cross-Sectional Area (a)	Conductor Diameter (b)	Min. Mean Thickness of Insulation	Core Dimensions		Min. Screen Wire Diameter	Min. Average Sheath Thickness	Overall Diameter		Weight	Conductor Resistance	Insulation Resistance
			Core Dimensions				Overall Diameter			Conductor Resistance	EI 110	EI 106/7/8/9
			Min.	Max.			Min.	Max.		20°C	20°C	20°C
mm²	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	Ω/km	MΩ x km	MΩ x km
TWO CORES
1.5	1.5	0.7	3.04	3.54	0.16	0.70	8.14	10.14	121	13.7	21.0	10.5
2.5	1.95	0.7	3.44	4.04	0.16	0.70	8.94	10.94	157	8.21	17.2	8.6
4	2.5	0.7	4.04	4.64	0.21	0.80	10.44	12.94	224	5.09	14.2	7.1
6	3.0	0.7	4.44	5.24	0.21	0.80	11.14	13.84	287	3.39	12.2	6.1
10	3.9	0.7	5.34	6.14	0.21	1.00	13.64	16.84	424	1.95	9.8	4.9
16	5.0	0.7	6.34	7.44	0.26	1.00	16.24	20.04	606	1.24	7.9	3.9
25	6.4	0.9	8.04	9.34	0.26	1.20	20.04	24.84	909	0.795	7.3	3.6
35	7.7	0.9	9.24	10.84	0.31	1.40	23.04	28.14	1213	0.565	6.7	3.3
50	9.2	1.0	10.84	12.64	0.31	1.40	26.64	32.54	1631	0.393	6.3	3.1
THREE CORES
1.5	1.5	0.7	3.04	3.54	0.16	0.70	8.64	10.64	156	13.7	21.0	10.5
2.5	1.95	0.7	3.44	4.04	0.16	0.70	9.44	11.64	207	8.21	17.2	8.6
4	2.5	0.7	4.04	4.64	0.21	0.80	11.04	13.54	295	5.09	14.2	7.1
6	3.0	0.7	4.44	5.24	0.21	0.80	11.84	14.54	384	3.39	12.2	6.1
10	3.9	0.7	5.34	6.14	0.26	1.00	14.64	18.24	593	1.95	9.8	4.9
16	5.0	0.7	6.34	7.44	0.26	1.20	17.64	21.54	848	1.24	7.9	3.9
25	6.4	0.9	8.04	9.34	0.26	1.20	21.54	26.34	1251	0.795	7.3	3.6
35	7.7	0.9	9.24	10.84	0.31	1.40	24.74	30.04	1674	0.565	6.7	3.3
50	9.2	1.0	10.84	12.64	0.31	1.60	28.54	34.84	2309	0.393	6.3	3.1
FOUR CORES
1.5	1.5	0.7	3.04	3.54	0.16	0.70	9.34	11.54	194	13.7	21.0	10.5
2.5	1.95	0.7	3.44	4.04	0.21	0.80	10.64	13.14	280	8.21	17.2	8.6
4	2.5	0.7	4.04	4.64	0.21	0.80	12.04	14.74	371	5.09	14.2	7.1
6	3.0	0.7	4.44	5.24	0.21	1.00	13.34	16.34	503	3.39	12.2	6.1
10	3.9	0.7	5.34	6.14	0.26	1.00	16.14	19.74	752	1.95	9.8	4.9
16	5.0	0.7	6.34	7.44	0.26	1.20	19.54	23.84	1082	1.24	7.9	3.9
25	6.4	0.9	8.04	9.34	0.31	1.40	24.24	29.54	1666	0.795	7.3	3.6
3x35+25	7.7/6.4	0.9/0.9	9.24/8.04	10.84/9.34	0.31	1.40	27.14	33.14	2152	0.565/0.795	6.7	3.3
3x50+25	9.2/6.4	1.0/0.9	10.84/8.04	12.64/9.34	0.31	1.60	31.74	38.44	2946	0.393/0.795	6.3	3.1

(a)= For information,indicative only
